Drone-Based Building Scanning with DJI Matrice 4D
High-precision aerial data acquisition for inspection, reverse engineering, and digital twin creation. Sub-centimeter RTK accuracy. EASA-certified operations across the European Union.
What is Drone-Based Building Scanning?
Drone-based building scanning is the process of using unmanned aerial vehicles (UAVs) equipped with high-resolution cameras and/or LiDAR sensors to capture dense spatial data of structures, facades, and terrain from multiple aerial viewpoints.
The DJI Matrice 4D enhances data accuracy through integrated RTK (Real-Time Kinematic) GNSS positioning — achieving ±1 cm horizontal and vertical accuracy without the need for extensive ground control points. Its onboard Manifold computing module enables real-time data quality validation during flight.
Clients can expect ground sampling distances of 1.5–3 cm/pixel, point cloud densities exceeding 500 pts/m², and georeferenced deliverables in standard engineering formats (LAS, E57, STEP, DWG). ZenCore 3D operates across the European Union with full EASA compliance.
Typical Resolution
1.5 – 3 cm/px GSD
at 80–120 m altitude
Data Capture Method
Photogrammetry + LiDAR
multi-sensor fusion
EU Service Coverage
All 27 EU States
EASA-certified operations
Point Cloud Density
100 – 2,000 pts/m²
project-dependent
DJI Matrice 4D with Manifold Computing
The DJI Matrice 4D is a professional-grade enterprise drone platform designed for precision data acquisition in complex environments. Paired with the DJI Manifold 3 onboard computing extension, it transforms raw aerial data collection into an intelligent edge-processing pipeline.
Stabilised Aerial Platform
6-axis gimbal stabilisation eliminates motion blur even in 12 m/s winds. Tri-directional obstacle sensing ensures operational safety near complex structures.
High-Resolution Imaging
48 MP full-frame CMOS sensor with mechanical shutter captures crisp imagery at full UAV speed. Mechanical shutter eliminates rolling shutter distortion critical for photogrammetry.
Manifold Onboard Processing
The Manifold 3 compute module runs AI inference and real-time quality checks during flight. Pre-processes point cloud tiles to reduce post-processing time by up to 60%.
RTK Positioning System
Integrated RTK GNSS with network RTK support achieves ±1 cm H / ±1.5 cm V absolute accuracy. Eliminates the need for dense GCP networks on large sites.
DJI Matrice 4D — Aerial survey mission
Technical Specifications
in optimal conditions
RTK horizontal / vertical
CMOS sensor
modular payload
edge AI processing
point cloud & mesh
at 100 m altitude
at standard altitude
How Drone Building Scanning Works
A structured 7-stage workflow from initial site assessment through to certified engineering deliverables — fully documented for enterprise audit and traceability.
Site Assessment
Geospatial review of the target structure. Airspace permissions, obstacle mapping, and risk classification per EU UAS regulations.
Flight Planning
Automated mission design with configurable altitude, overlap, and sensor parameters. GCP placement for maximum positional accuracy.
Autonomous Data Capture
DJI Matrice 4D executes the pre-planned flight. RTK GNSS locks sub-centimeter position. Redundant IMU ensures stable imaging throughout.
Manifold Onboard Processing
DJI Manifold 3 compute module performs real-time quality checks, metadata tagging, and preliminary point-cloud stitching during flight.
Data Post-Processing
Photogrammetric reconstruction and LiDAR fusion in our EU-based secure processing facility. Dense point cloud generation with radiometric correction.
3D Model / Point Cloud Generation
Output: calibrated dense point cloud (100+ points/m²), textured mesh, and georeferenced orthophoto. Accuracy validation report included.
Engineering Deliverables
Client-ready output packages: STEP/DWG geometry, inspection report, BIM-ready model, or full digital twin depending on project scope.
Industry Use Cases
Drone scanning addresses a range of engineering and inspection challenges across industries. Each use case below includes the core problem it solves and the recommended deliverable.

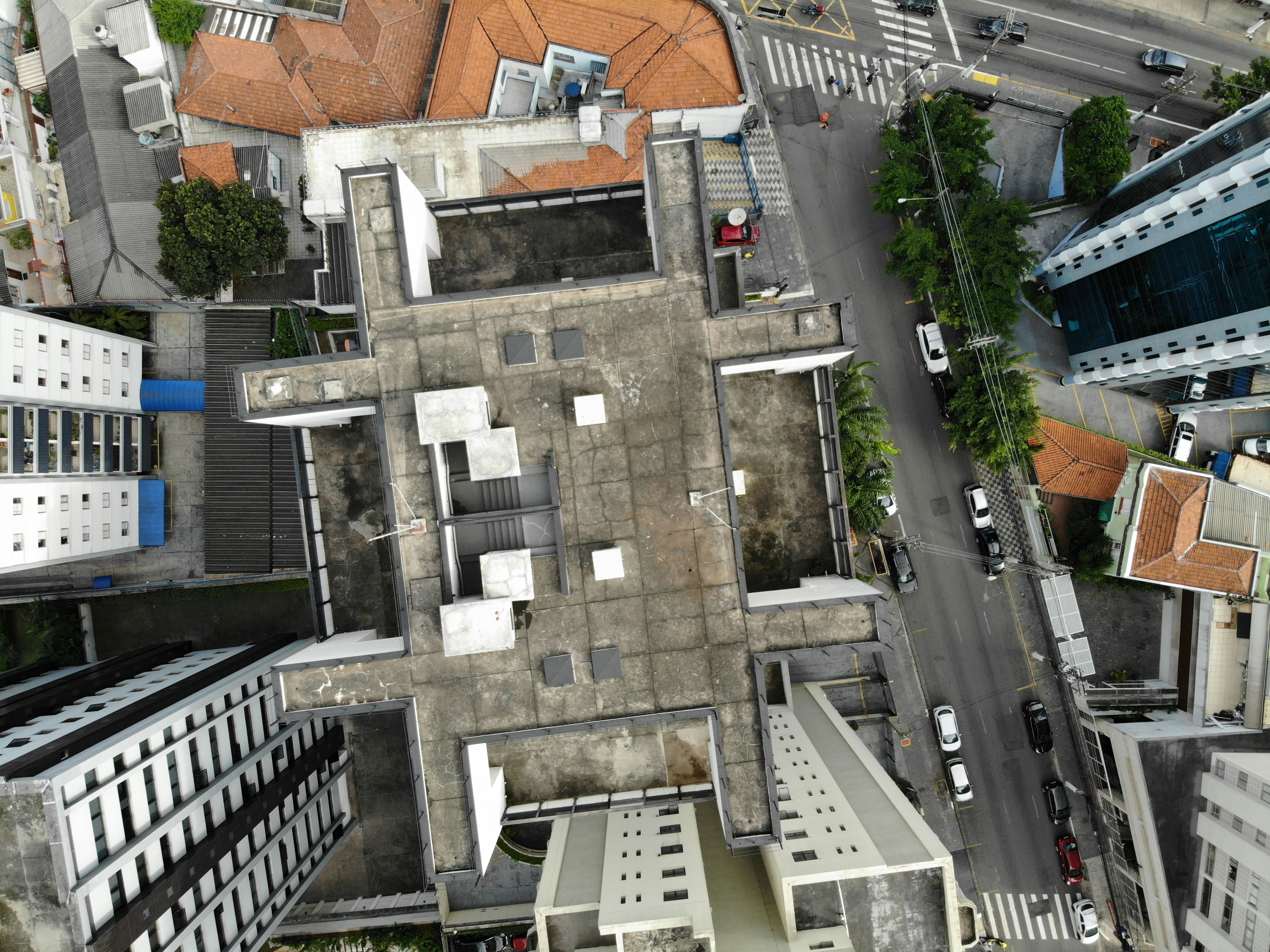

Industrial Roof Inspection
Problem
Traditional rope-access or scaffold-based inspections are costly, slow, and expose workers to height hazards.
Recommended Output
Annotated orthophoto + defect classification report + CAD damage map
Facade Damage Assessment
Problem
Visual inspection of large facades misses micro-cracks and moisture ingress patterns invisible from ground level.
Recommended Output
High-resolution textured mesh + crack detection overlay + structural risk index
Construction Progress Monitoring
Problem
Site managers lack accurate volumetric data to compare progress against BIM models on a weekly basis.
Recommended Output
Time-series point cloud delta + volume deviation report + schedule overlay
Heritage Preservation Documentation
Problem
Historic structures require non-contact documentation with sub-centimeter accuracy for conservation records.
Recommended Output
Archival-grade textured 3D mesh + orthophotos + metadata conforming to ICOMOS standards
Reverse Engineering of Structures
Problem
As-built drawings are missing, outdated, or inaccurate — creating risk for renovation, expansion, or compliance projects.
Recommended Output
CAD-ready geometry (STEP / DWG) with dimensional tolerance report
Digital Twin Creation
Problem
Facility teams cannot monitor structural changes over time or simulate maintenance scenarios without a live digital reference.
Recommended Output
BIM-integrated digital twin with point cloud overlay + change detection alerts
Deliverables & Output Formats
All projects are delivered with a full metadata package and processing report. File formats are matched to your engineering toolchain.
High-Resolution Point Cloud
Classified, geo-referenced dense point cloud at 100–2,000+ pts/m²
Textured 3D Mesh
Photorealistic mesh with radiometrically corrected texture atlas
CAD-Ready Geometry
Clean solid model or 2D drawing set for engineering use cases
Orthophoto Maps
True-orthophoto with <5 cm GSD and embedded coordinate system
Inspection Report
Annotated defect log with severity classification and coordinates
Project Data at a Glance
Typical Project Lead Time
from site survey to final deliverable
Site Coverage per Mission
multi-flight support for larger sites
Point Cloud Density
configurable to project requirement
EU Deployment Availability
on-site within 48–72 h of contract signature
Positional Accuracy
absolute, with RTK reference
Compliance & Safety
ZenCore 3D operates all drone missions under the full scope of EU aviation, data protection, and industrial safety regulations. Every project is backed by documented compliance artefacts.
EU UAS Regulation Compliance
All operations conducted under EASA UAS Regulation (EU) 2019/947. Flights operate in Open or Specific category depending on site classification. Full documentation available for client audit.
Flight Permissions & Airspace
We handle NOTAM filing, airspace authorisation through national CAAs, and drone operator registration in all EU member states. Site-specific waivers for controlled airspace are managed by our certified UAS operators.
Data Security & Privacy (GDPR)
All captured imagery and derived data is processed within EU-based infrastructure. GDPR-compliant data handling with signed DPA (Data Processing Agreement). Raw data retention policy: 90 days after delivery.
Industrial Safety Standards
Site-specific risk assessment (SORA) completed before each mission. PPE, exclusion zone management, and emergency procedures follow ISO 31000 and client EHS requirements. Insurance covers €5M liability per incident.
All missions are fully documented
Compliance documentation package available for client audit upon request
Start Your Drone Scanning Project
Our engineering team will evaluate your site, recommend the optimal flight parameters, and deliver a fixed-price project proposal within 24 hours. EASA-certified pilots. EU-wide deployment.
